Post by vitha on Mon May 11, 2015 5:02 am

first, pull the drum and spray with brake cleaner to get rid of any brake dust.
if your drums are seize rusted, as mine were, you will need to pound with a ball peen hammer and use some pb blaster. hit the drum in between the studs and on the center of the axle hub.

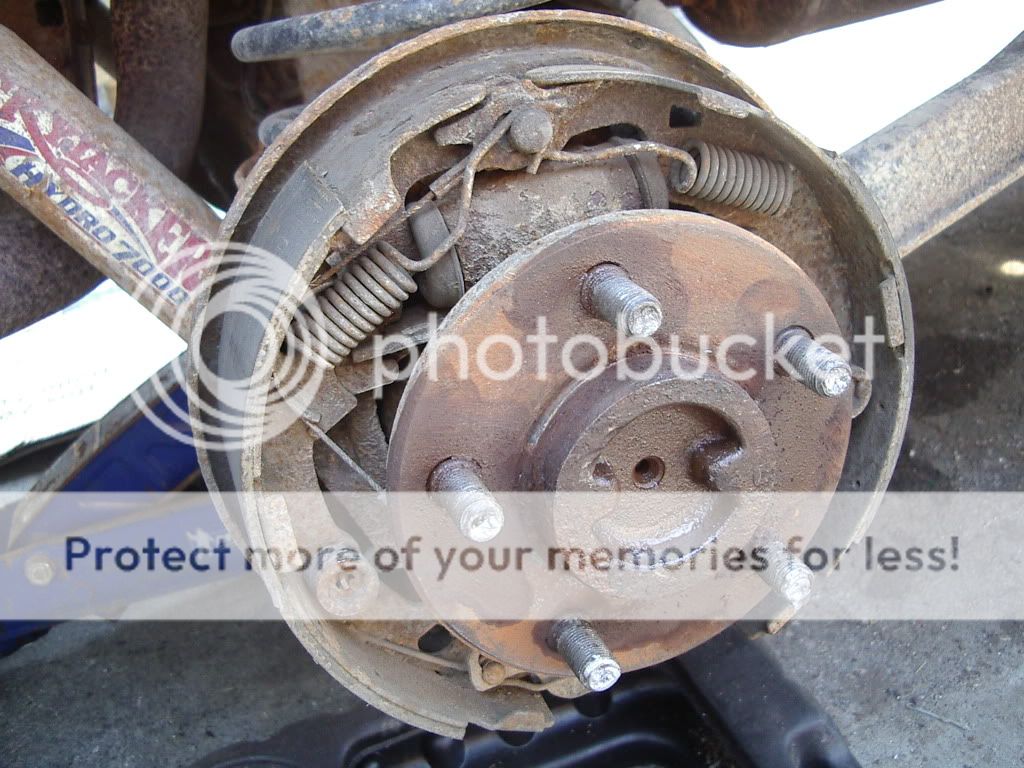

here's what it looks like once the drum is removed.
drum brakes replacement IMGP5605
then using a pair of vise grips, remove the retainer/springs.
drum brakes replacement IMGP5606

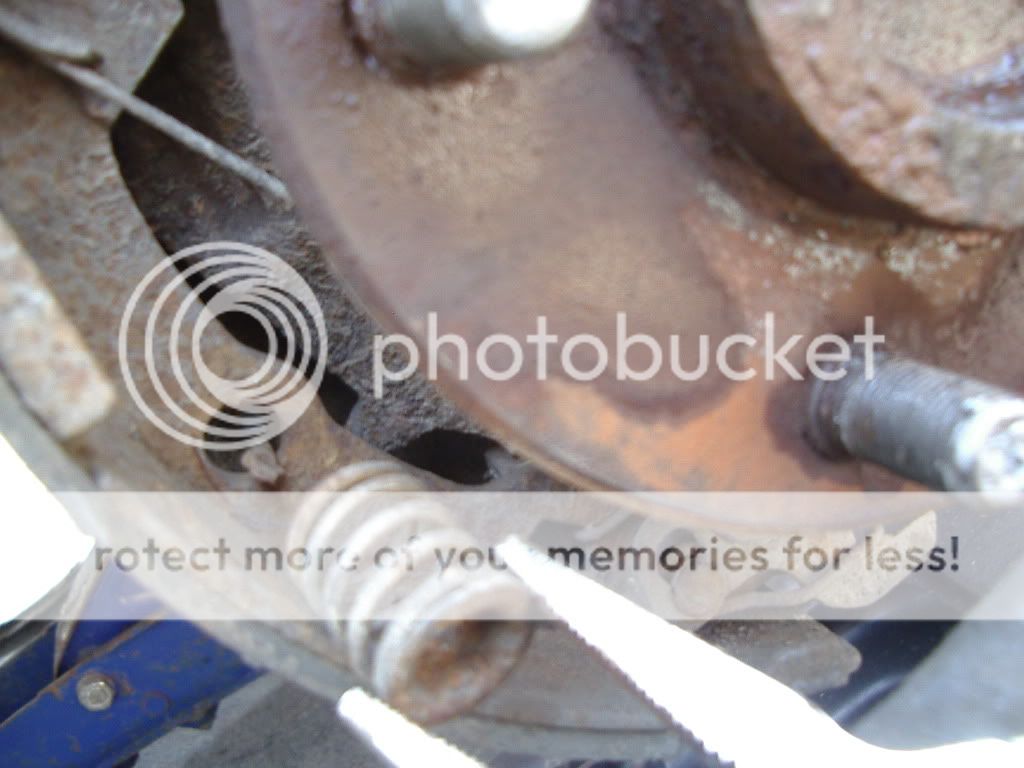

I will hold the pin from the back with my finger, and push and twist with the vise grips 1/4 turn to release the retainer.
drum brakes replacement IMGP5607

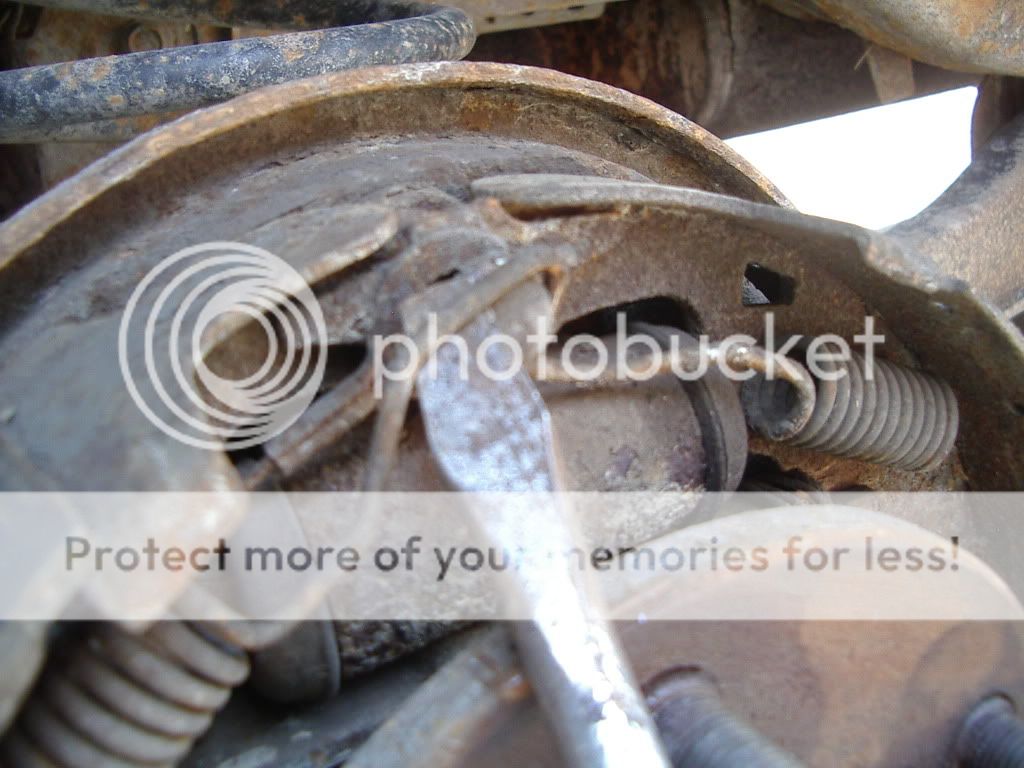

then using a flat head screwdriver, pry the primary return spring off the anchor pin. then the secondary return spring.
drum brakes replacement IMGP5609
then remove the adjuster cable. you may have to push up on the adjuster to relax the tension.
drum brakes replacement IMGP5611

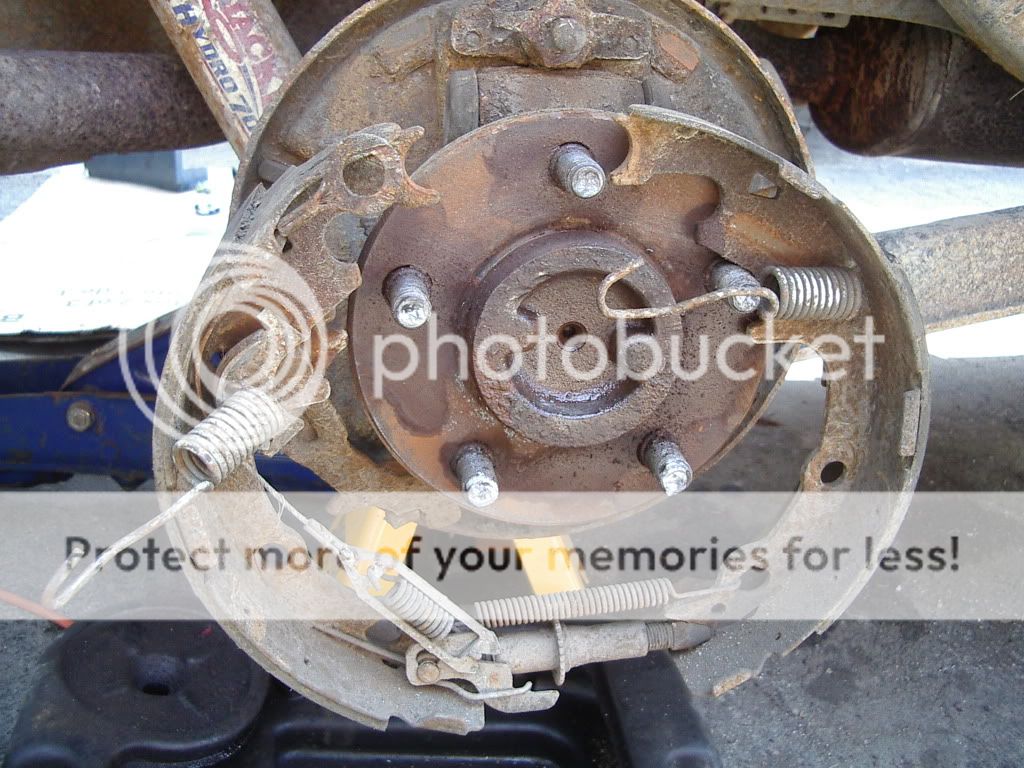

now you should be able to spread them apart and remove everything away from the backing plate. then just unhook the parking brake lever from the brake shoe.
drum brakes replacement IMGP5612
now you can remove the adjuster and spring as well as the cable guide to be reinstalled on the new shoes.
drum brakes replacement IMGP5613

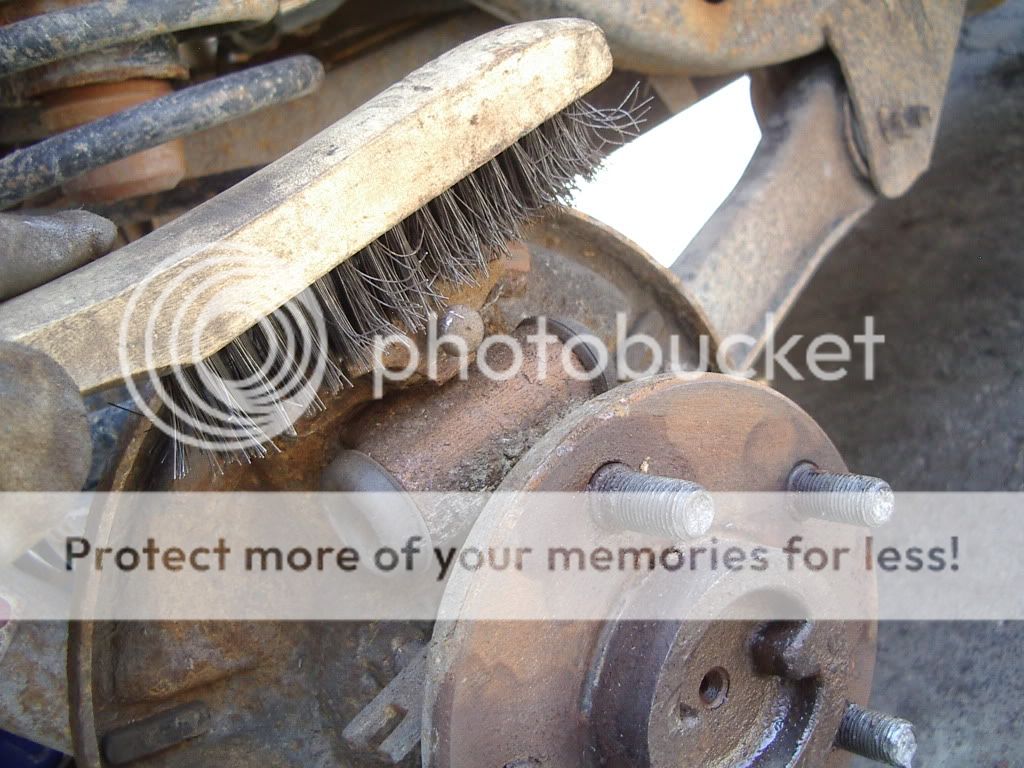

now I clean with a wire brush. then spray with brake cleaner. then you can paint if wanted.
drum brakes replacement IMGP5614

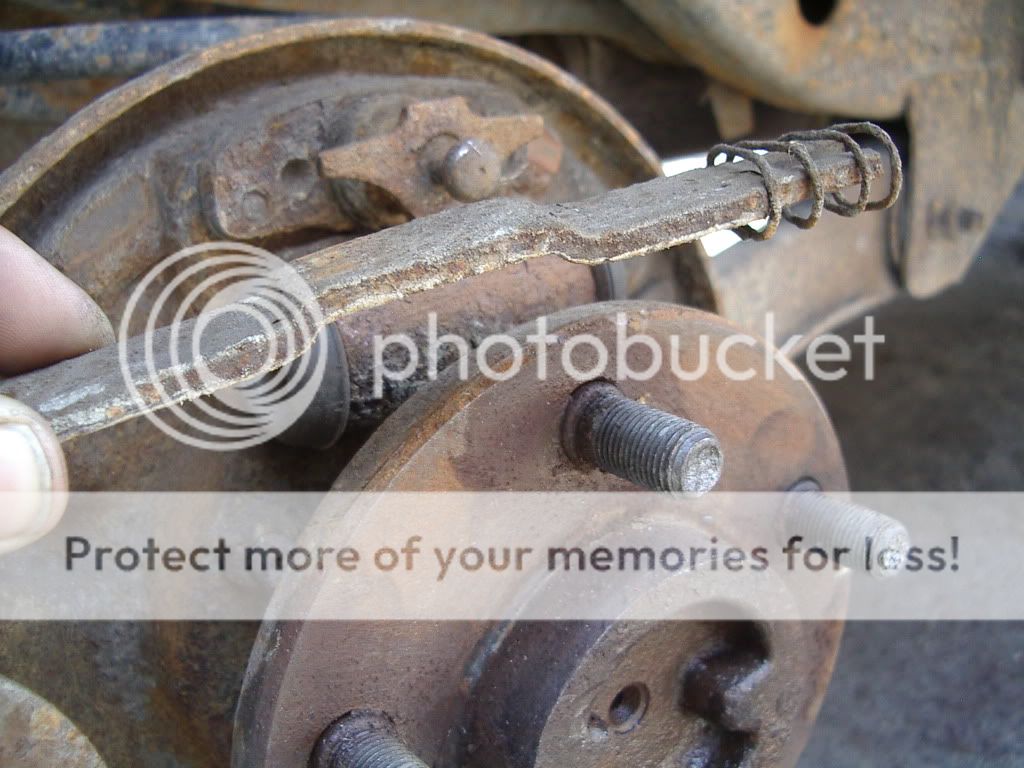

don't forget to remove the parking brake link, noting the direction/location.
drum brakes replacement IMGP5615

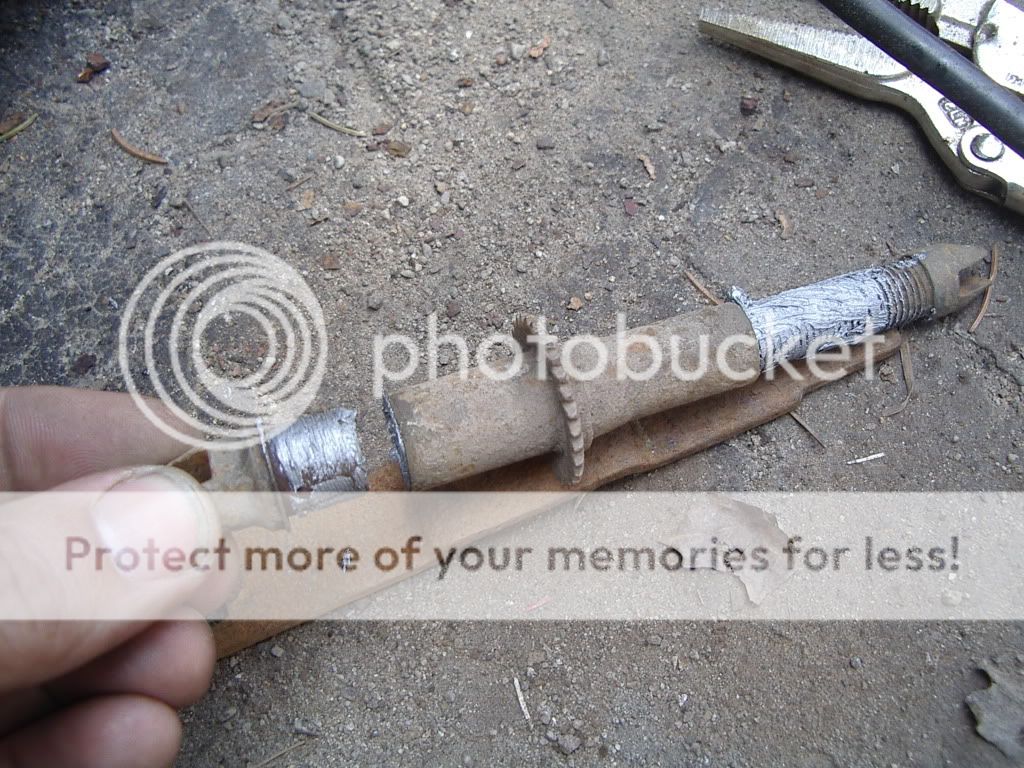

I also chose to coat the star wheel self adjuster with some anti-seize.
drum brakes replacement IMGP5617
here is a pic of the new shoes and new spring kit in the orientation of reassembly.
drum brakes replacement IMGP5618

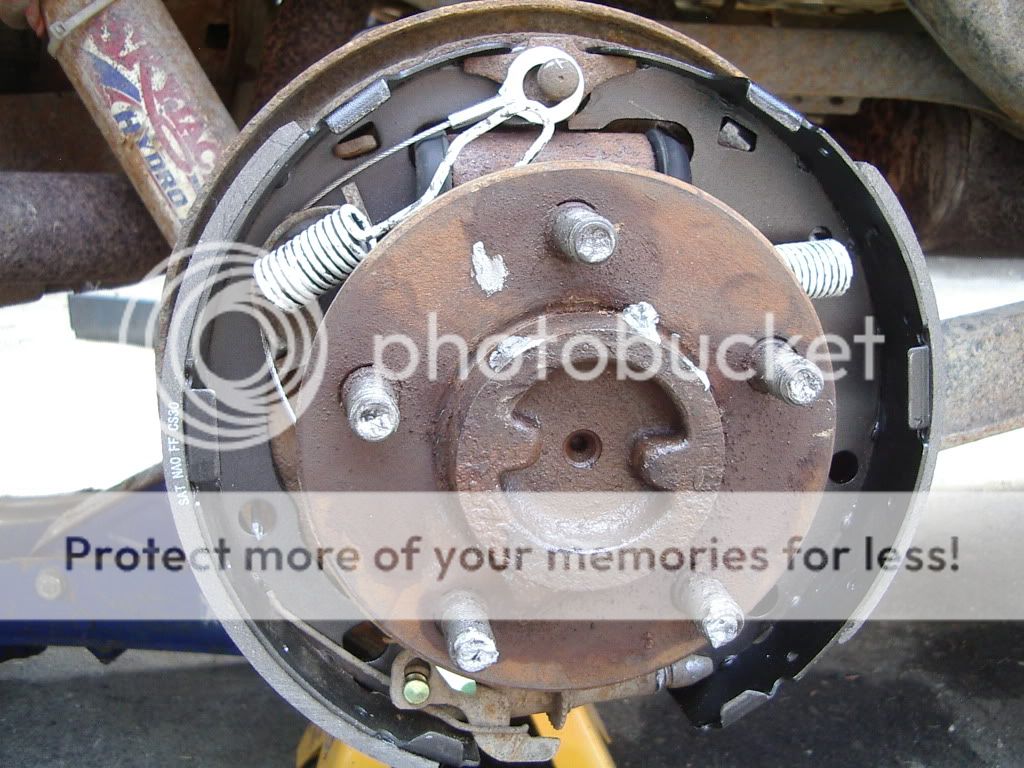

start with the adjuster cable.
drum brakes replacement IMGP5619

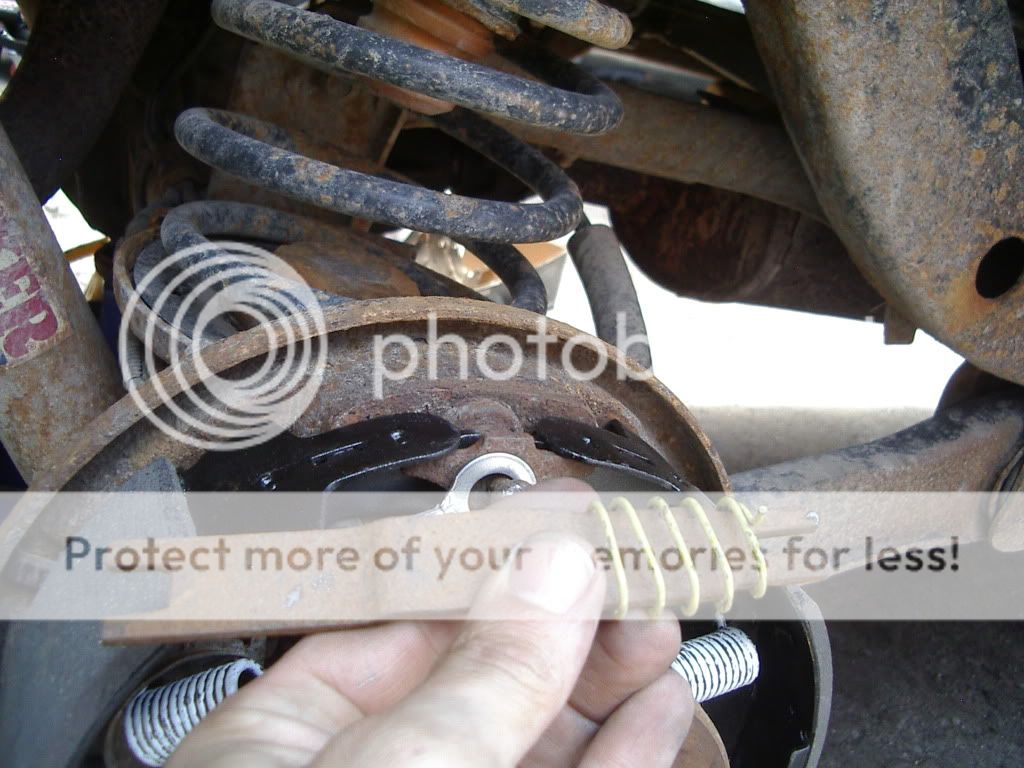

then install the parking brake link in correct orientation.
drum brakes replacement IMGP5620

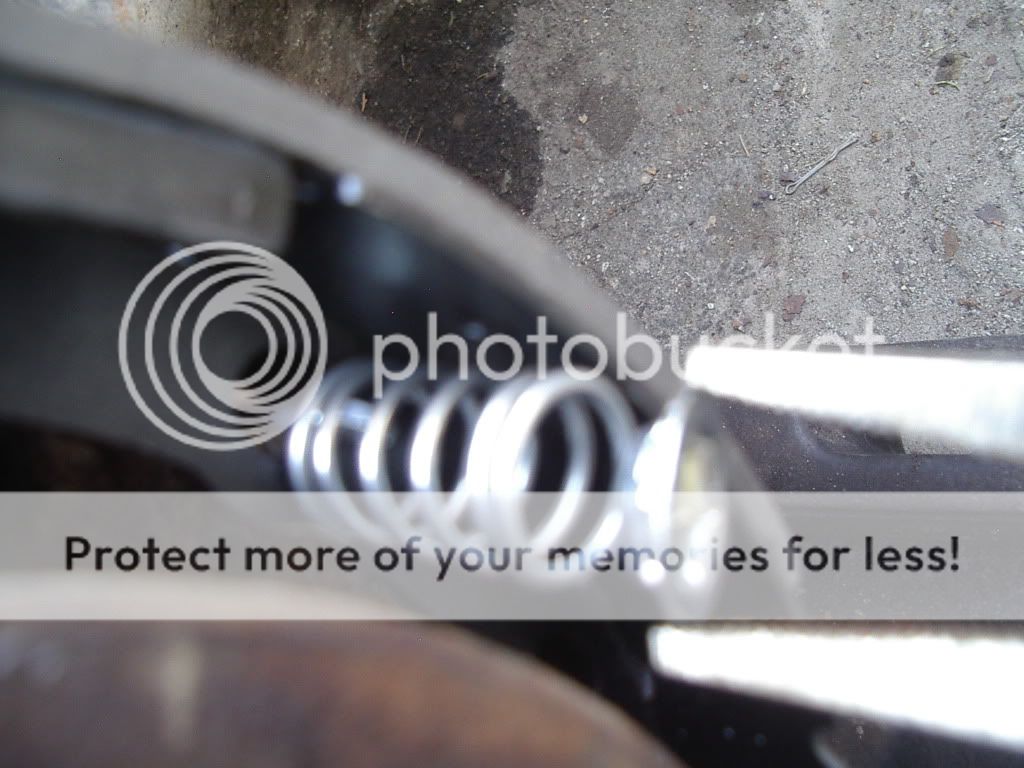

then install the new retainers/springs. again, i will hold the pin from the back and push in on the retainer cap.
drum brakes replacement IMGP5624

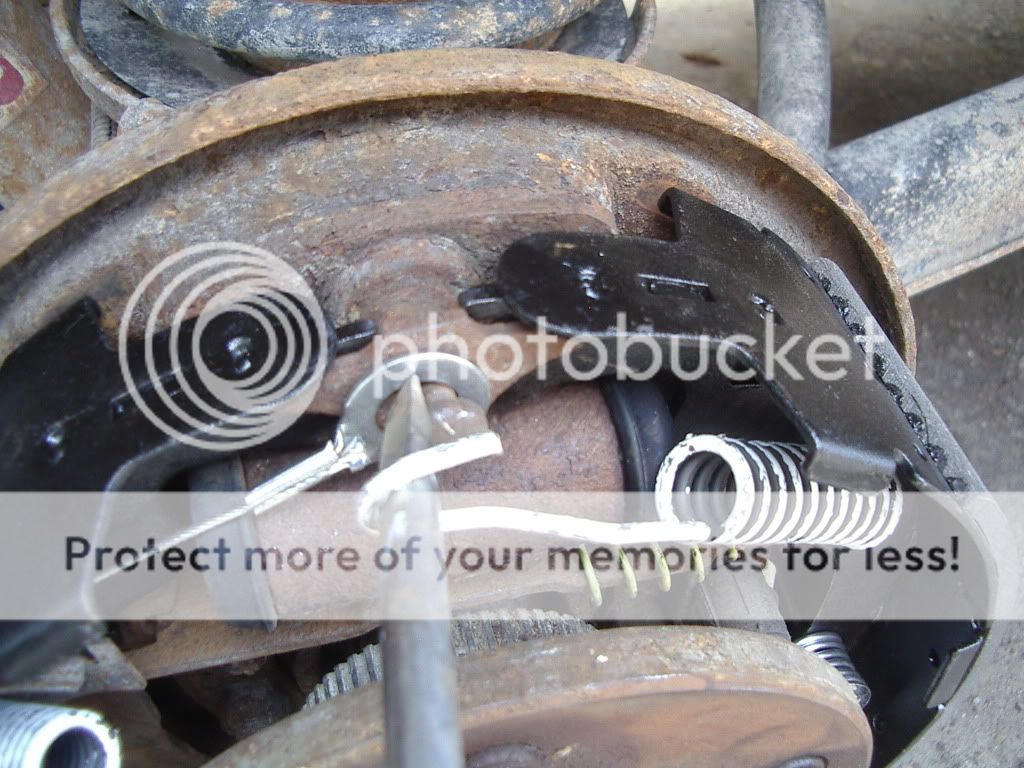

then slide the secondary return spring over the anchor pin using the screwdriver. it will slide right in place.
drum brakes replacement IMGP5626
then the primary return spring.
drum brakes replacement IMGP5628

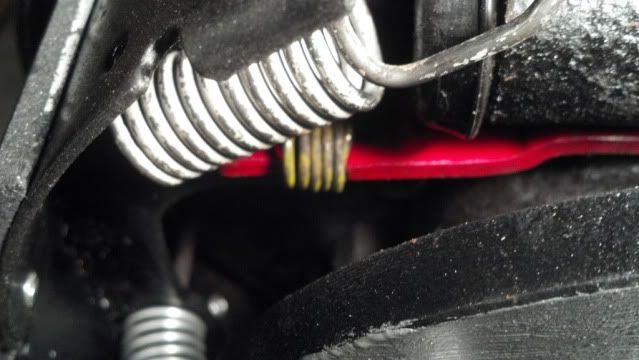

Your parking break spring should look like this when complete. Do not let it pass the shoulder as CAJED has done.
drum brakes replacement 2012-05-28_01-59-22_787

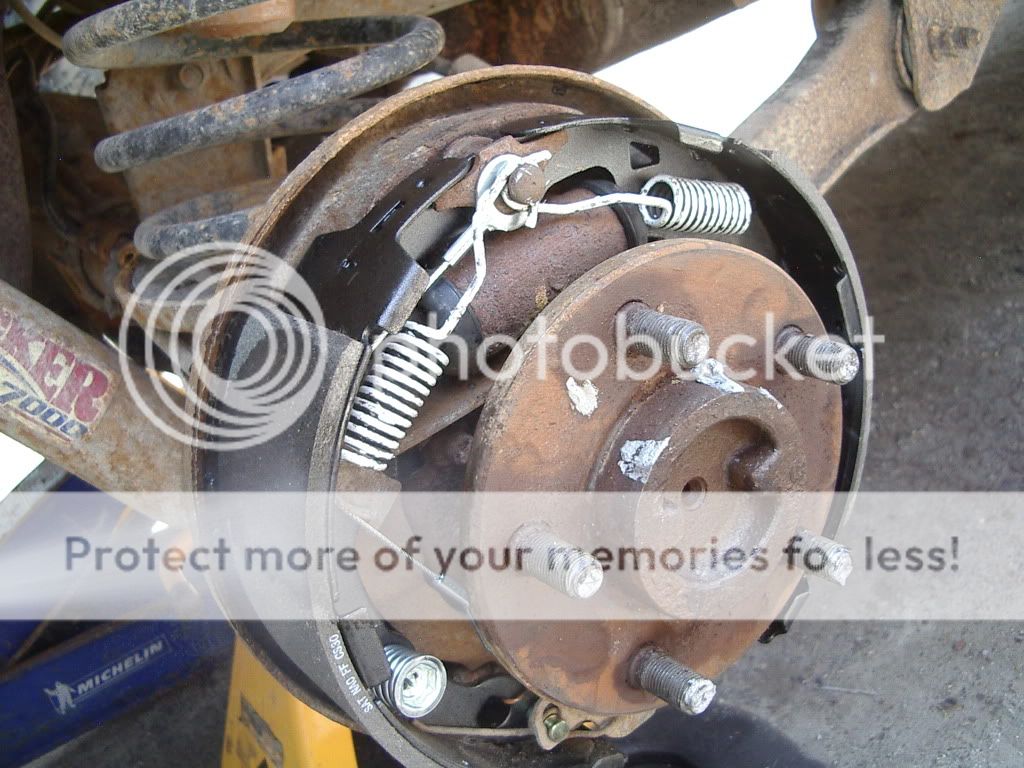

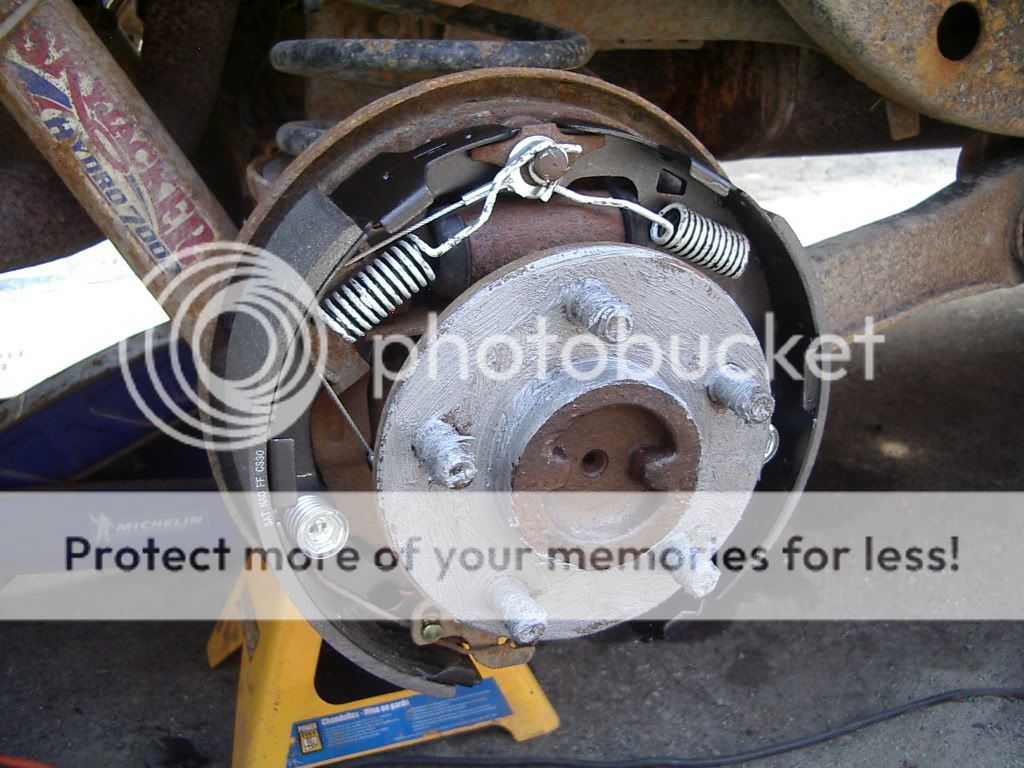

make sure the adjuster cable is on the guide properly, and give it a wash with some brake cleaner.
drum brakes replacement IMGP5630
drum brakes replacement IMGP5631

don't forget to torque the wheel lugs to 100lb/ft. again i used anti-seize on the lugs.
